Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor

Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor
Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor

Large Image :  Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor

Product Details:
Place of Origin: China
Brand Name: SONTUOEC ,WZSTEC
Certification: CE
Model Number: STH8-63; STH8-100
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: 50PCS/CTN
Supply Ability: 2000pcs/day

Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor

Description
Standard: IEC 60947-1 Coil Voltage: 220,240,380,415,440V
Items Name: Household Modular AC Contactor Pole: 1p 2p 3p 4p
Trade Marks: SONTUOEC Credential: CE,CB
High Light:

2 Pole 2NC AC Contactor

,

Sontuoec 63A AC Contactor

,

Household Modular AC Contactor



STH8 SONTUOEC 63A 2 Pole 2NC DIN Rail Contactor Household  Modular AC Contactor

Scope of application

SCH8 SONTUOEC  Modular Household AC Contactor (also known as analog contactors and architectural contactors) are mainly used in power systems with AC 50Hz/60Hz, rated working voltage up to 400V and rated working current up to 100A. They are used as remote switches and control circuits in AC-1 and AC-7a (non-inductive or low-inductive loads, resistance furnaces, household appliances and similar low-inductive loads). It can also be used to control the load of household motor. Modular Contactors cant't be used in break short-circuit currents, so appropriate short-circuit protective appliances (such as small circuit breakers) should be selected when using them. It meets the standard IEC 61095. BCH8 contactor can expand auxiliary control, protection and indication functions. STH8 Modular Contactor is a kind of control device used for long distance connection and disconnection of inductionless or low inductive load, resistance furnace, household appliances and similar low inductive load, household motor, etc.SCH8 Modular Contactor are mainly used in homes, hotels, apartments, office buildings, public buildings, shopping malls, gymnasiums and other places to achieve automatic control functions.



SCH8 series Houlsehold Contactors can be used to remote control applications in alternative networks:
lighting, heating, ventilation,roller blinds, sanitary hot water mechanical ventilation systems, etc load-shedding of non-priority circuits




Model Utilization category Ui (V) Ue (V~) Conventional heating current (A) Ie (A) Controlled power (kW)
STH8-20 AC-1,AC-7a 500 230 20 20 4
STH8-20 AC-7b 500 230 20 9 1.2
STH8-25 AC-1,AC-7a 500 400 25 25 16
STH8-40 AC-1,AC-7a 500 400 40 40 40
STH8-63 AC-1,AC-7a 500 400 63

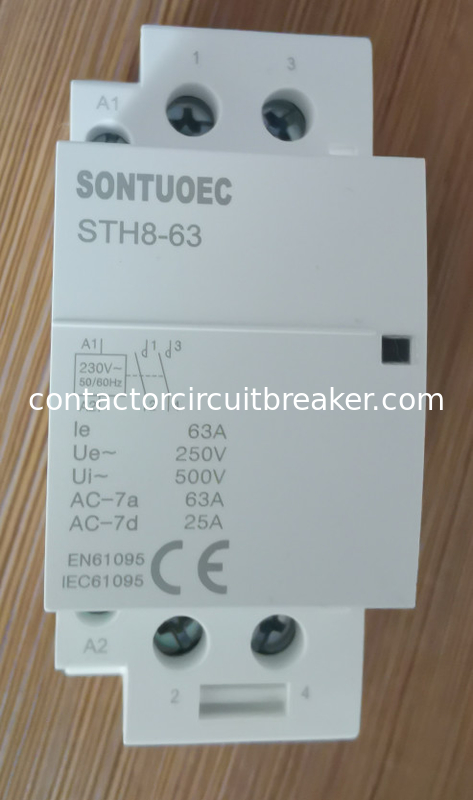

Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor 0

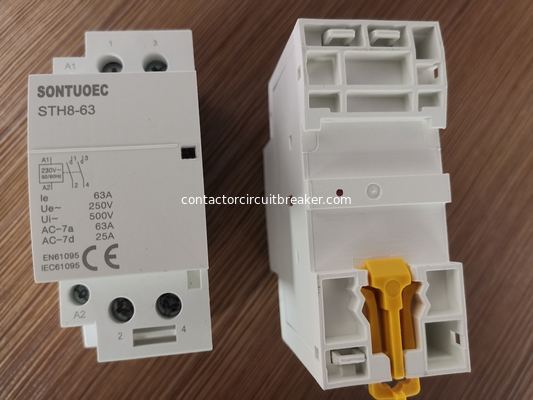

Household Modular Sontuoec 63A 2 Pole 2NC AC Contactor 1

STH8 SONTUOEC AC Household Contactor 230/400V
High degree of Electrical life
The SCH8 modular contactor has been tested to withstand 100,000 times full load switch ON or OFF under AC-a load Utilization category
Noiseless and hum free
The SCH8 SONTUOEC contactor eliminates the obvious impact sound of the traditional contactor at the moment of pull-in,and eliminates contactor in the low-frequency hum noise of operating Applicable to most electric areas of commercial building.In particular,the modular contactor AC/DC series achieves free noise and creates a quiet environment for you
Energy Saving
The SCH8 contactor has an optimized electromagnetic system,which greatly reduces the holding power of contactor
Compact design
The width of SCH8 contactors is much smaller than traditional AC Contactors, which saves users more installation space and can be conveniently installed in ordinary distribution boxes
Auxiliary function
The SCH8 contactor can be extended with auxiliary contacts on the right side of the product, which is more suitable for signal feedback requirements in an intelligent control environment
