Product Details:
|
| Rated Voltage: | 24V To 230V | Color: | Red, Yellow, Green, Blue,white |
|---|---|---|---|
| Items Name: | Led MCB Indicator | Pole: | 1P |
| High Light: | Led Voltage MCB Indicator,220 Volt MCB Indicator,One Mould MCB Indicator |
||

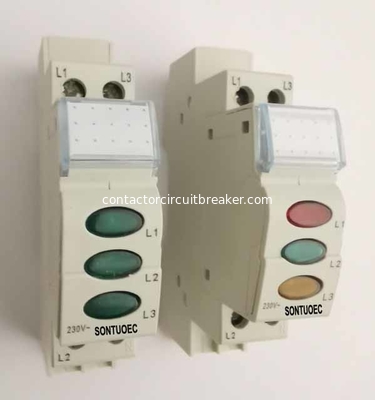

CE approvals 220 volt led voltage MCB indicator three color one mould
Applicable to circuit with rated voltage 230V~and frequency 50/60Hz for visual indication and warning
Three phase LED lamp in one module.
Obviously indication phase with three different colors.
Technical Data:
Rated Voltage(Un):24/48/110/230VAC
24/48/110/230VDC
Rated frequency:50/60Hz
Number of poles:1P
Light source:LED diode
Rated insulation voltage(Ui):500V
Light Source capacity:0.8W
Colors:red/green/blue/yellow/transparent
Terminals:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 60947-5-1
Catalog NO. CTN Size:46X24X33CM ; W/N.G: 17/16KG
| Model | Description | QTY/Box | QTY/CTN |
| ST3-24 | 24VAC | 12 | 240 |
| ST3-48 | 48VAC | 12 | 240 |
| ST3-110 | 110VAC | 12 | 240 |
| ST3-230 | 230VAC | 12 | 240 |
