Product Details:
|
| Standard: | IEC 61009 | Ue: | 230/400V |
|---|---|---|---|
| Type: | RCCB | Breaking Capacity: | 6KA |
| Max Rated Current: | 40A | Texture: | Plastic |
| High Light: | Overload Protection RCBO Circuit Breaker,Plastic Texture RCBO Circuit Breaker,40A RCBO Circuit Breaker |
||
Professional manufactures 1P+N 40A/30mA RCBO Overload current Protection residual current circuit breaker Economic type

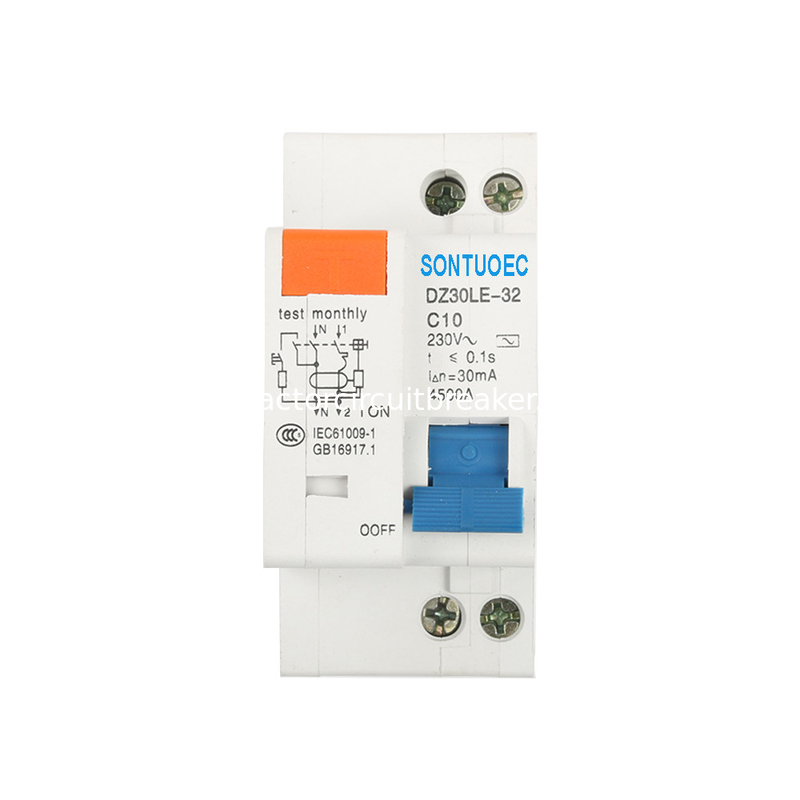

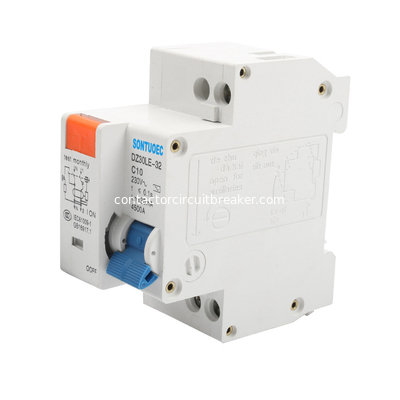

DZ30LE-32 series electronic earth leakage protection circuit breaker is suitable for single phase residential circuit of AC 50Hz/60Hz, rated voltage 230V, and rated current 6A~32A. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live wire and zero line are cut off at the same time, also protecting person from electric leakage shock in the case of the fire wire and zero line connected reverse.
It conforms to the standard IEC1009-1,GB16917.1.
Feature:
1). Provides protection against electric shock, earth fault, leakage current;
2). Provides protection against overload, short-circuit and over-voltage;
3). Small volume, high breaking capacity; live wire and zero line are cut off at the same time;
4). Small size and weight, easy installation and wiring, high and durable performance
5). Provide against misoperation tripping caused by instantaneous voltage and instantaneous current.
Main Technical Data:
1. Rated Current: 6A,10A,16A,20A,25A,32A
2. Rated residual operating current: 0.03A,0.1A,0.30A.
3. Tripping Characteristics: B,C
4. Icn:3000,4500A
5. Rated residual current operated making and breaking capacity IΔm: 500A
6. Rated residual non-operated current: IΔno: 0.5IΔn.
| Products name: | DZ30LE-32 |
|
Model : |
Electronic type |
| Rated Current: | 6,10,16,20,25,32A |
| Rated Leakage Current: | 10mA, 30mA, 100mA |
| Pole: | 1P+N |
| Electro-machanical endurance | over 4000 cycles |
| Standard: | IEC61009.1 |
| Breaking Capacity: | 3KA, 4.5KA |
