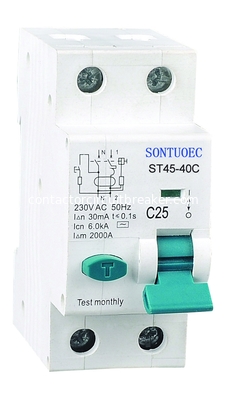

Electrical type 2P(1P+N) 6KA Series RCBO 36mm width Residual Current Circuit Breaker with overload current protection

Electrical type 2P(1P+N) 6KA Series RCBO 36mm width  Residual Current Circuit Breaker with overload current protection
Electrical type 2P(1P+N) 6KA Series RCBO 36mm width  Residual Current Circuit Breaker with overload current protection

Large Image :  Electrical type 2P(1P+N) 6KA Series RCBO 36mm width Residual Current Circuit Breaker with overload current protection

Product Details:
Place of Origin: China
Brand Name: SONTUNE
Certification: CE, SAA, Semko ,ISO9001
Model Number: RDL7-100
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiable
Delivery Time: 15DAYS
Supply Ability: 5000PCS/DAY

Electrical type 2P(1P+N) 6KA Series RCBO 36mm width Residual Current Circuit Breaker with overload current protection

Description
Standard: IEC 61008 Ue: 230/400V
Type: RCCB Breaking Capacity: 6KA
Texture: Plastic Color: White
High Light:

residual current circuit breaker rccb

,

residual circuit breaker

Electrical type 2P(1P+N) 6KA Series RCBO 36mm width Residual Current Circuit Breaker with overload current protection



STRO2-40 Series residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.




Product Over View:



1.Provide protection against earth fault/leakage current and function of isolation

2.High short-circuit current withstand capacity

3.Applicable to terminal and pin/fork type busbar connection

4. Equipped with finger protected connection terminals

5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.





Items no.:  STRO2-40
Number of poles 2P
Rated current in A 10 16 25 32 40 50 63
Rated frequency Hz 50
Rated operating voltagge Ue V 230,400
Rated insulation voltage Ui V 500
Rated short circuit breaking
capacity Im
A 630 1000
Rated limited short circuit
current Inc
A 6000
Rated residual action
current I△n
mA 30 100 300
Anti~interference level 0.5 цs/100kHz,200A peak value
8/20цs, 3000A peak valye
Mechanical life times 10000
Protection level lp20
Product type Type A, Type AC,Type S
Installation mode Din rail plug~in
Connection mode Terminal with clip
Ambient air temperature Min/Max ℃ -25/+40
Altitude Max m 2000
Leading wire Terminal busbar method Min/Max mm 1/35
Screw torque N · m 2 2.5
Outline dimensions

(length X width X height)
2P mm 90×36×76

Weight 2P kg 0.275






We can offer you competive price,Continuance support and good
After service,also,our company can ensure the quantity of our
Products,They are durable and long life
