Product Details:
|
Standard: | IEC 60898 | Pole Number: | 1P,2P,3P,4P |
---|---|---|---|
Breaking Capacity: | 3KA,6KA | Certificate: | CE |
Install: | Din Rail | Function: | MCB |
High Light: | miniature circuit breaker,miniature current circuit breaker |

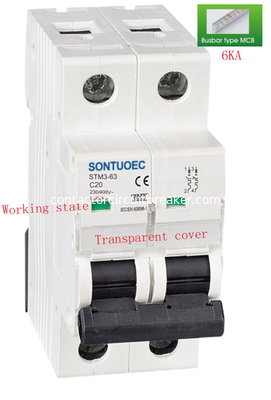

STM3-63 C63 Type White Miniature Circuit Breaker 6A-63A, 4p MCB Low Voltage
General
STM3-63 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V
3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.
1. Application:For protecting cables and equipments against overload and short circuit.
2. General rules for choosing MCB.
The earthing systems,short-circuit current at the circuit breaker installation point,which must always be less than the breaking capacity of this device,network normal voltage.
B curve (3-5In) protection and control of the circuits against length cables in TN and IT systems.
C curve (5-10In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.
D curve (10-14In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,breakdown lamps.)
Specifications
Model | STM3-63 MCB |
Pole | 1P,2P,3P,4P |
Rated Current(In) | 1,2,4,6,10,16,20,25,32,40,50,63A |
Rated Voltage(Un) | 230/400V |
Rated Frequency | 50/60HZ |
Tripping curve | B,C,D |
Magnetic releases | B curve: between 3and 5 In |
C curve: between 5and 10In | |
D curve: between 10 and 14In | |
Electro-mechanical endurance | over 6000 cycles |
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q3: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q4: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q5: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy
Main benefits
1. Safety performances ensured worldwide by international marks approval
2. High quality execution and attention to details
3. Complete range of products and related accessories
