Product Details:
|
| Standard: | IEC61008.1 | Coil Voltage: | 240/415V |
|---|---|---|---|
| Texture: | Plastic PA66,85% Siliver, Red Copper | Color: | White |
| Pole: | 2P,4P | Delivery: | 25days |
| High Light: | PA66 ELCB Circuit Breaker,415V ELCB Circuit Breaker,2P ELCB Circuit Breaker |
||

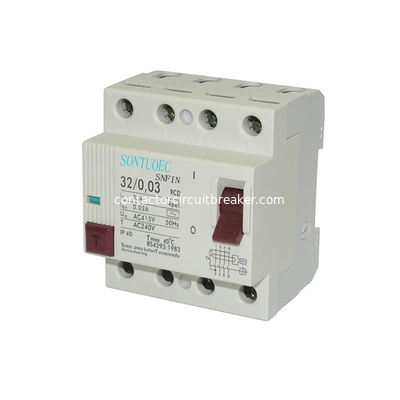

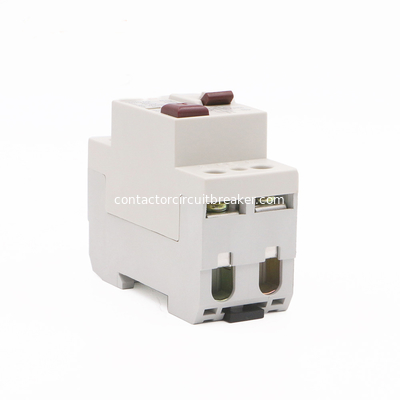

Manufactory , SNFIN(NFIN) 2P 4P RCCB/RCD types of electrical circuit breaker
Application:
SNFIN(NFIN) Residual current circuit breaker (without over-current protection)is suitable for the line of AC 50/60Hz,voltage 240V(2pole)/415V(4pole),rated currentup to 63A.When there is human electricity shock or if the leakage currenof the line exceeds the prescribed value, NFIN Residual current circuit breaker will cut off the power rapidly to infrequent chageover of the line in normal situation. NFIN Residual current circuit breaker is application to industrial area, commercial area, tall buikding and civil house.
NFIN Residual current circuit breaker complies with standard IEC/EN61008.1 and GB16916
| Item | Residual Current Circuit Breaker |
| Pole | 2P,4P |
| Rated Current In | 16A ,20A ,25A ,32A ,40A ,50A ,63A , |
| Rated Operating Voltage | 240/415V |
| Breaking Capacity | 6KA |
| Type | Electronic or Magnetic type ; A model, AC model |
| Working Temperature | '-5' to +40℃ |
| Protection Degree | IP20 |
| Installation Environment | No obvious impact and vibration |
Wiring Diagram:
Dimension:
Packaging Details:
2 Pole 1PC packed in inner box
Master Carton: 100 PCS
Carton size: 53x40x19CM
N.W./G.W.: 23/25 KGS
20' GP Container: 70,200PCS
40' GP Container: Overweight
4 Pole 1PC packed in inner box
Master Carton: 50 PCS
Carton size: 53x40x19CM
N.W./G.W.: 21/23 KGS
20' GP Container: 35,100PCS
40' GP Container: Overweigh
