Product Details:
|
| Standard: | IEC 61009.1 | Ue: | 230/400V |
|---|---|---|---|
| Type: | ELCB Switch | Breaking Capacity: | 6KA |
| Cover: | Transparent | Installation Type: | Din Rail |
| High Light: | 380V Earth Leakage Circuit Breaker,Sontuoec Earth Leakage Circuit Breaker,Household ELCB Circuit Breaker |
||

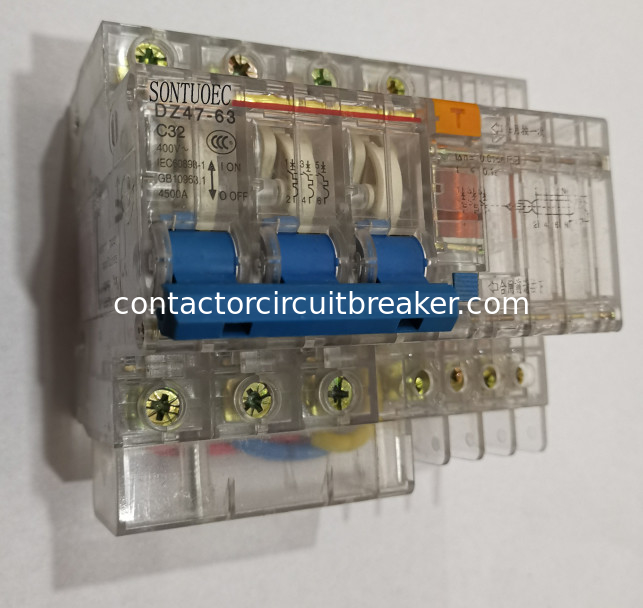

SONTUOEC brand Switchgear DZ47LE 3P/4L 63A 380V earth leakage circuit breaker Household Leakage Protector RCBO with Transparent cover
Application:
DZ47LE-63 series leakage circuit breakers are suitable for AC 50/60Hz, rated voltage 230/400V, rated current 1-63A lines, with leakage, shock, overload, short
circuit protection functions. When the leakage current exceeds the prescribed current value, the product can cut off the fault current within 0.1s, protect personal safety and prevent the accident caused by leakage current of equipment, and can be used to protect the overload and short circuit of the line. Under normal circumstances, it can be used as an infrequent disconnection and conversion of the line. It is mainly used in the protection of building lighting and distribution system.
The product is conformity with GB16917.1,IEC61009-1 Standards.
Feature:
1. Without auxiliary power supply,the product is designed with strong immunity and extending protection range against residual current.
2. With higher rated ultimate short circuit,up to 6KA.
3. Reliable,accurate and convenient adjustment of product instantaneous action is ensured.
4. Service life of product has been greatly enhanced through specially designed tripping mechanism.
Technical parameters:
1. Rated Current: 6A,10A,16A,20A,25A,32A,40A,50A,63A.
2. Rated residual operating current:0.01A,0.03A,0.1A,0.3A.0.5A
3. Tripping Characteristics: B(3ln~5ln),C(5ln~10ln)
4. According to behaviour in presence of d.c Components:Type A,Type AC.
5. Icn:6000A
6. Rated residual current operated making and breaking capacity IΔm: 500A
7. Rated residual non-operated current: IΔno: 0.5IΔn.
| Type | DZ47LE-63 RCBO |
| Number of poles | 1P,1P+N,2P,3P,3P+N,4P |
| Rated Current(In) | 6,10,16, 20, 25, 32A ,40A,50A,63A |
| Rated operating current( In) | 10, 30, 100, 300,500mA |
| Rated Voltage(Un) | AC 230/400 V |
| Residual operating current scope | 0.5In~In |
| Residual current off-time | ≤0.3s |
| Type | A, AC |
| Ultimate short-circuit breaking capacity(Icn) | 4500(4.5KA); 6000A(6KA) |
| Endurance | ≥4000 |
|
Model :
|
Electronical type |
|
Tripping curve:
|
B,C,D |
| Terminal protection | IP20 |
