Product Details:
|
| High Light: | Modular MCB SKD Parts,Sontuoec MCB SKD Parts,4KV MCB SKD Parts |
||
|---|---|---|---|

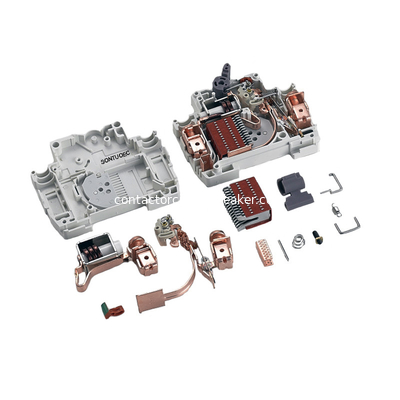

SONTUOEC provide good price Modular structure MCB L7 AC& DC Factory Building Solution MCB SKD PARTS
Our manufactory can provide SKD of all kinds of Circuit Breaker for the clients' accembling in your side; also will help the clients to provide the relative testing machine and tools ; also can provide relative technology supports and training if needed .
Application
This product has intellectual property right, breaking capacity up to 6KA or 10KA , provide perfect matching products, we can apply for local certifications according to local market requirements. provide overload and short circuit protection, It conforms with the standards of IEC60898.
Product Main Technical
| Rated current In | 1A-63A |
| Pole number | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated voltage Ue | AC 230/400V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6 KA |
| Running breaking capacity | 6 KA |
| Rated shock withstand voltage | 4 KV |
| Tripping characteristic | B . C . D |
| Mechanical life | 10000 times |
| Electrical life | 4000 times |
| Protection level | IP20 |
| Fiducial temperature | 30℃ |
| Ambient temperature | -5℃ to +40℃ |
| Storage temperature | -35℃ to +70℃ |
| Installation type | Modular structure, Rail mounted |
| Terminal wiring capability | 25mm² |
| Tightening torque | 2.0N*m 22In-Ibs |
| Mounting | 35mm |
