|Installation:||Plug In Type||Name:||Rcbo Breaker|
|Items Name:||Insert Type RCBO|

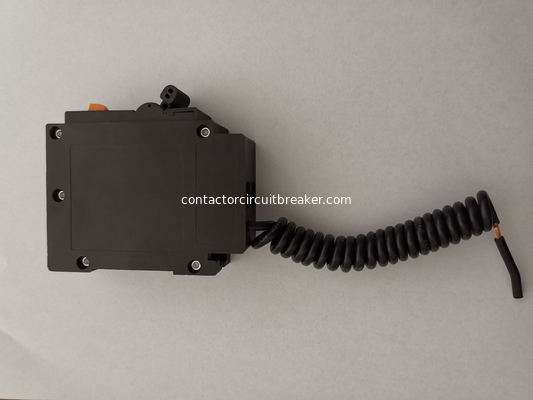

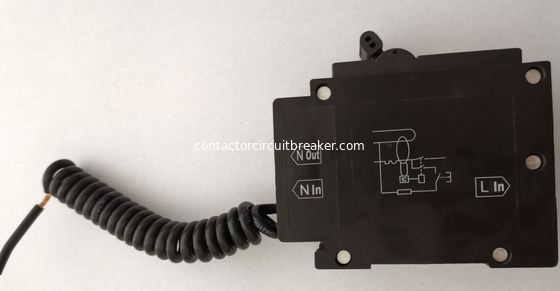

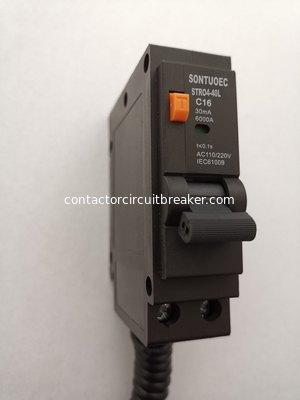

6ka Plug In RCBO Circuit Breaker,
RCBO Circuit Breaker 18mm Width,
Plastic PA66 RCBO Circuit Breaker
Normal working & installment conditions:
1. Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2. Installment plance altitude: ≤2000m
3. Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4. Pollution degree: 2 class
5. Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6. Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7. Mounted Category: II,III class.
8. omply with Southern Market or Middle East Market.
|Type(wave form of the earth leakage sensed)||electronic type|
|Rated current In||A||A,AC|
|Rated voltage||V||AC 110/220V;|
|Rated Current :||10,16,20,25,32,40A|
|Rated sensitivity I△n||A||0.01,0.03,0.1,0.3,0.5|
|Insulation voltage Ui||V||500|
|Rated residual making and
breaking capacity I△m
|Short-circuit current I△c||A||6000|
(with daily average ≤35℃)
|Installation||Terminal connection type||Cable/U-type busbar/pin-type busbar|
|Terminal size top/bottom for cable||mm2||25|
|Terminal size top/bottom for busbar||mm2||25|
|Mounting||On DIN rail EN 60715(35mm)by means of fast clip device|
|Connection||From top and bottom|
